Supplies

Zn(NO₃)₂·6H₂O, sodium chondroitin sulfate, and a couple of,4-dimethylimidazolewere sourced from Shanghai Aladdin Biochemical Expertise Co., Ltd. TP5 and MTX have been offered by Meilun Biotech Co., Ltd. Thiazolyl blue tetrazolium bromide (MTT) was bought from Aladdin Chemical substances. The CT26 and RKO cells have been offered by American Sort Tradition Assortment (ATCC). DMEM/1640 tradition medium was obtained from Gibco. FBS was bought from BI. The Annexin V-FITC/PI and the TUNEL cell apoptosis detection and the cell apoptosis detection kits have been offered by Yeasen Biotechnology Shanghai Co., Ltd. Enzyme-linked immunosorbent assay (ELISA) kits for mouse IL-2, mouse IL-6, mouse IL-10, mouse IFN-gamma (IFN-γ) and TNF-α have been offered by ABclonal. The mouse granzyme B ELISA package was bought from Solarbio. Rabbit mAbs from Biolegend towards the next have been used: cGAS (79978), STING (13647), phospho-STING (AF7416), IRF-3 (4302 S), and phospho-IRF-3 (4302 S). Anti-GLUT1 rabbit mAb (bsm-52240R) was offered by Bioss Biotech Beijing Co. Ltd. (China). AMPK (ab72845), phospho-AMPK rabbit mAb (AP1002), β-actin rabbit mAb (AC050), and CD8A rabbit polyAb (A11856) have been bought from ABclonal. Anti-DFNA5/GSDME (ab215191) was offered by Abcam. PD-L1 rabbit mAb (M033179) was obtained from ABMART. Anti-caspase-3 (PTM-5752) and anti-cleaved-caspase-3 (PTM-77246) rabbit mAbs have been bought from Biolab. Ki67 rabbit polyAb (28074-1-AP) was offered by Proteintech. Anti-CD8 (GB114196) and Anti-CD4 (GB15064) antibodies have been from Servicebio. The erythrocyte lysis buffer was offered by Beijing Solarbio. Beyotime offered the ATP detection package.

Nanoparticle characterization

The Malvern Zetasizer Nano Analyzer was employed to detect the zeta potential and measurement distribution of various nanoparticles. Transmission electron microscopy (TEM) photos have been captured with an HT7800 TEM instrument (Hitachi, Japan). An ultraviolet-visible (UV-vis) spectrophotometer (UV-2700) was utilized to acquire the UV-vis spectra. A laser pointer (Senwei, China) was used to document the standard tyndall impact of nanoparticles. To conduct elemental evaluation through X-ray photoelectron spectroscopy (XPS), a Ok-Alpha instrument obtained from Thermo Fisher Scientific was used, whereas information evaluation was performed by Avantage software program from Thermo Fisher Scientific. The chemical construction of every samples was confirmed primarily based on X-ray diffraction (XRD) by an X’Pert Professional MPD instrument and Fourier-transform infrared spectroscopy (FTIR) utilizing a Thermo Fisher Scientific Nicolet iS5 instrument, each of which have been built-in into the scientific compass platform (www.shiyanjia.com) for subsequent evaluation. A microplate reader (Synergy H1, BioTek, Vermont, USA) was used to find out the ATP ranges and cell viability. Fluorescence photos, together with photos generated by EdU fluorescence labeling for cell proliferation, have been acquired with an inverted fluorescence microscope produced by Olympus (Tokyo, Japan). The in-vivo biodistribution of CS/NPs was investigated with a small-animal imaging system (PerkinElmer, Massachusetts, USA). An computerized biochemical analyzer (Chemray 240, Rayto, China) was used to carry out blood biochemical evaluation. The drug launch information and ELISA measurements have been obtained utilizing a Tecan-Spark multifunctional microplate reader (Tecan, Switzerland). Mobile uptake, move cytometry, and immunological analyses have been accomplished with a BD FACSCelesta Analytical Stream Cytometer (BD/Becton Dickinson, New York New Jersey, USA).

Synthesis of ZIF-8@MTX/TP5

The synthesis of ZIF-8@MTX/TP5 NPs was achieved following a one-pot technique. First, to create answer A, each 40 mg MTX and 40 mg TP5 have been dissolved in double-distilled water (ddH₂O, 4 mL). In parallel, 100 mg zinc nitrate Zn(NO₃)₂·6H₂O was dissolved in ddH₂O (0.4 mL) to acquire answer B, whereas 1 g 2-methylimidazole (2-MIM) was dissolved in ddH₂O (4 mL) to create answer C. Answer B was stirred at 600 rpm for five min, and answer A was then added dropwise whereas stirring for an extra 10 min. The combination was then added dropwise to answer C beneath steady stirring at 800 rpm for 15 min. Subsequently, the product was obtained utilizing centrifugation at 13,000 rpm for 30 min and rinsed 3 times in ddH₂O.

Synthesis of CS/ZIF-8@MTX/TP5

To synthesize CS/ZIF-8@MTX/TP5, of ZIF-8@MTX/TP5 nanoparticles (100 mg) have been suspended in of three% (w/v) chondroitin sulfate (CS) answer (30 mL). The suspension was subjected to probe sonication for 30 min, after which magnetic stirring proceeded at 1000 rpm for twenty-four h. After centrifugation, the product was washed 3 times with ddH₂O to acquire CS/NPs, as illustrated in Scheme 1A.

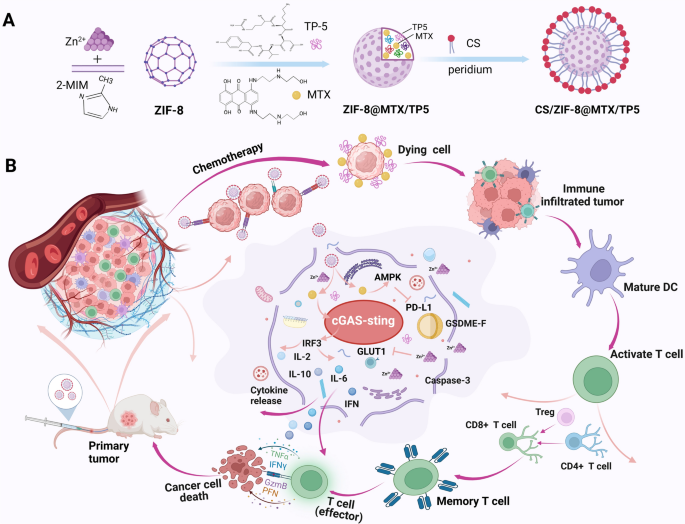

A Synthesis of CS/ZIF-8@MTX/TP5 nanoparticles (CS/NPs). B Underlying mechanism of CS/NPs-mediated initiation of the cGAS-STING signaling pathway to advertise synergistic chemo-immunotherapy

MTX and TP5 loading effectivity

The components used to find out the loading effectivity of MTX and TP5 was as follows: Encapsulation effectivity (%) = W_E/W_T ×100, the place W_E is the amount of MTX and TP5 encapsulated in CS/ZIF-8@MTX/TP5. W_T represents everything of MTX and TP5 added. The quantities of MTX and TP5 have been decided by UV-vis spectroscopy absorption primarily based on the usual curves.

Cell tradition circumstances

The mouse-derived CRC cell line CT26 and the human-derived CRC cell line RKO was performed in RPMI 1640 medium (Gibco) by including 1% penicillin-streptomycin and 10% FBS. Cell tradition proceeded in an incubator maintained at 37 °C in a 5% CO₂ ambiance.

Mobile uptake assay in vitro

To research the absorption of CS/NPs, RKO and CT26 cells have been added to six-well plates (density: 2 × 10⁴ cells/properly). The tradition medium was taken out, and the wells have been supplied with contemporary medium containing 10 µM NPs. Cell incubation was then performed for 0, 1, 2, 4, 6, and eight h. Following incubation, cells have been rinsed thrice in PBS for the removing of drug residue. The absorption was assessed through move cytometry and inverted fluorescence microscopy to look at digested and stuck cells.

Cell viability assay

To evaluate the cytotoxicity of CS/NPs, an MTT assay was carried out. RKO and CT26 cells have been added to 96-well plates (density: 4 × 10³ cells/properly) and allowed to incubate in a single day. After incubation, cells underwent 24 h of remedy with regular saline (Ctrl) and ranging concentrations of medicine singly or together (TP5, MTX, MTX/TP5 (M + T), NPs, and CS/NPs). Supernatant assortment and cell rinsing with PBS have been performed previous to the MTT assay utilizing a microplate reader. As well as, the anti-proliferative capacity of various therapies have been additional assessed utilizing colony formation assays. Twenty-four-well plates have been used for the assay, with RKO and CT26 cells seeded (density: 1 × 10³ cells/properly) and incubated for 3 days. After incubation, cells have been subjected to therapies with Ctrl, TP5, MTX, (M + T), NPs, or CS/NPs. Following drug withdrawal, the cells have been cultured in an incubator at 37 °C beneath a 5% CO₂ ambiance for 7 days. The ensuing cell colonies have been gently rinsed 3 times, mounted for 30 min in 4% paraformaldehyde (PFA), and stained with crystal violet. The colony numbers have been captured with a digital digital camera, and ImageJ software program was employed to carry out counting. The colony formation charge (%) was calculated primarily based on evaluating the realm of crystal violet staining in several teams.

EdU labeling assay

EdU labeling was explored utilizing the EdU Cell Proliferation Assay Equipment. Briefly, CRC cells have been added to 96-well plates (density: 5 × 10³ cells/properly) and subjected to remedy with varied concentrations of Ctrl, TP5, MTX, M + T, NPs, and CS/NPs primarily based on the drug uptake occasions. Following the removing of the supernatant and incubation for an extra 24 h, images of the cells have been captured with an inverted fluorescence microscope and counted with ImageJ software program.

Cell apoptosis assay

The Annexin V-FITC/PI Cell Apoptosis Assay Equipment was utilized to find out the speed of tumor cell apoptosis. Six-well plates have been used to incubate cells seeded (density: 5 × 10⁴ cells/properly) for twenty-four h. Subsequently, cells have been subjected to remedy with Ctrl, TP5, MTX, M + T, NPs, or CS/NPs and incubated for an extra 24 h. Cells have been then stained with each annexin V-FITC and PI (30 min) following the producer’s protocol. Lastly, move cytometry was carried out for the evaluation of apoptosis in accordance with the producer’s directions.

Western blotting

After drug remedy, cells have been taken through scraping, rinsed utilizing chilly PBS, and subjected to sonication in radioimmunoprecipitation assay (RIPA) buffer containing SDS (0.1%), sodium deoxycholate (1%), and Triton X-100 (1%), with added phosphatase inhibitors and protease inhibitors. SDS-PAGE was carried out on the lysates, which have been then transferred onto PVDF membranes. Subsequent, the membranes have been blocked at room temperature for two h utilizing skimmed milk. Incubation was carried out at 4 °C with particular main antibodies adopted by 2 h incubation with secondary antibodies. Protein expression was visualized utilizing Immobilon Western HRP Substrate and the ChemiScope 0050 Contact Built-in Chemiluminescence Imaging System.

ATP detection assay

ATP detection kits have been employed to find out the extent of ATP. On this assay, cells have been seeded in six-well plates (density: 96 × 10⁴ cells/properly). After drug intervention, the cell tradition supernatant was collected and processed. Then, 20 µL supernatant was combined with a portion of the assay’s working answer (100 µL). A multifunctional enzyme marker was used to acquire the ATP fluorescence depth.

Co-culture experiments

We validated the in vitro liposomal cell immunological outcomes by co-culture experiments. Cell tradition was carried out in six-well plates (density: 5 × 10⁴ cells/properly). Following drug remedy, the cells underwent incubation for twenty-four h. Moreover, splenic cells have been obtained from feminine BALB/c mice and seeded within the six-well plates. Co-incubation of tumor cells and splenic cells was performed in an incubator at 37 °C for 48 h. The supernatant containing the cells was harvested and underwent centrifugation at 4000 rpm for 3 min. Following centrifugation, the supernatant was disposed of and the cells have been obtained. The cells within the six-well plates have been handled with trypsin and the digestion was terminated with an entire tradition medium. Following centrifugation at 4000 rpm for 3 min, the supernatant was discarded and the cells have been collected. The cells underwent staining with anti-CD11c-PE, anti-CD80-FITC, anti-CD86-APC, anti-CD3-FITC, anti-CD4-PE, and anti-CD8-APC antibodies, and move cytometry was employed to find out the proportion of mature DCs and T-cell activation.

In vivo imaging and biodistribution evaluation

To evaluate drug accumulation within the tumor space, the medication have been intravenously administered to Luc-CT26 subcutaneous tumor-bearing mice when the tumor quantity reached 150–200 mm³. First, free single-drug MTX (1 mg kg⁻¹), non-targeted ZIF-8@MTX/TP5 (2 mg kg⁻¹), and CS/ZIF-8@MTX/TP5 (2 mg kg⁻¹) have been injected into the tail vein. Mice underwent anesthesia with 3% isoflurane, and pictures of mice have been captured with an in-vivo imaging system (IVIS Lumina XR III, PerkinElmer, Massaachusetts, USA) at 1, 2, 4, 6, 8, and 24 h post-injection. Mice have been euthanized for biodistribution evaluation following the 24-h imaging, and tumors and main organs have been dissected and used to acquire ex-vivo fluorescence photos.

In vivo antitumor examine

Yaokang Biotechnology Co., Ltd. (Chengdu, China) equipped six-week-old feminine BALB/c mice that weighed roughly 18–20 g. All of the animals research have been performed in accordance with the “Tips for Animal Experiments” and have been authorised by the Sichuan College Animal Ethics and Use Committee. First, a unilateral subcutaneous tumor mannequin was created by the injection of mice with Luc-CT26 colorectal most cancers cells (5.0 × 10⁵ cells suspended in serum-free 1640 medium) in the proper axillary subcutaneous area. When the amount of the tumors had grown to 100 mm³, mice have been chosen at random and cut up into six teams (n = 5 per group) to discover the antitumor results of the multifunctional NPs. All drug therapies, specifically, Ctrl (regular saline), TP5, MTX, (M + T), NPs, and CS/NPs (2 mg/kg), have been administered to mice by tail vein injection each different day. The tumor quantity and physique weight of mice have been recorded each 2 days. A vernier caliper was used to acquire the tumor measurement, and the amount of tumors (mm³) was decided by the next components: (:textual content{T}textual content{u}textual content{m}textual content{o}textual content{r}:textual content{V}textual content{o}textual content{l}textual content{u}textual content{m}textual content{e}:left({textual content{m}textual content{m}}^{3}proper)=frac{textual content{L}textual content{e}textual content{n}textual content{g}textual content{t}textual content{h}occasions:{textual content{W}textual content{i}textual content{d}textual content{t}textual content{h}}^{2}}{2}). On day 15 of therapeutic intervention, all mice have been euthanized and tumor tissue have been eliminated and weighed to evaluate the antitumor impact of drug therapies. The tumor inhibition charge was calculated in keeping with the next equation:

The tumors and spleen, coronary heart, kidneys, liver, lung tissue have been additional harvested for subsequent experiments.

Anti-tumor immune activation experiment

Tumor tissue and spleens have been collected from the handled mice on the fifteenth day, and grinding and processing have been used to arrange single-cell suspensions. Cell staining was performed utilizing anti-CD11c-PE, anti-CD3-FITC, anti-CD4-APC, anti-CD80-FITC, anti-CD4-PE, anti-CD86-APC, anti-CD8-APC anti-CD25-FITC, and anti-Foxp3-PE antibodies, after which move cytometry was carried out.

The activation of immune response

On this examine, a bilateral subcutaneous tumor mannequin was established utilizing BALB/c mice by the intratumoral injection of CT26-Luc cells (5 × 10⁵ cells) to induce the expansion of proximal main tumors within the left axillary subcutaneous area of feminine BALB/c mice coupled with the subcutaneous injection of CT26-Luc cells (5 × 10⁵ cells) into the proper axillary subcutaneous area of the identical mouse to induce the expansion of distal tumors. When the amount of tumors had grown to roughly 6 mm, mice have been chosen at random and positioned into certainly one of six teams: Ctrl (management), TP5, MTX, (M + T), NPs, and CS/NPs (n = 5 per group). Peritumoral drug administration was performed on alternating days, with the tumor quantity and physique weight of every mouse recorded each 2 days. On day 14, bilateral tumor tissues and spleens have been excised from handled mice and processed to generate single-cell suspensions. Tumor cells underwent staining with anti-CD11c-FITC, anti-CD80-APC, anti-CD86-PE, anti-CD3-FITC, anti-CD4-PE, anti-CD8-APC, anti-CD4-APC, anti-CD25-FITC, and anti-Foxp3-PE antibodies, after which move cytometry was carried out to acquire the proportions and numbers of CD4⁺ and CD8⁺ T cells within the proximal left and distal proper tumors and spleens.

Histological staining

The harvested mouse tumors and main organs have been mounted utilizing 4% PFA after which embedded in paraffin. Tissue sections with a thickness of 4 μm have been taken from paraffin-embedded blocks and histological examination was carried out primarily based on hematoxylin and eosin (H&E) staining. As well as, immunohistochemical staining (IHC) was performed for KI67, PD-L1, cGAS, and P-STING to judge protein expression ranges in tumor tissues.

Immunofluorescence

First, cells have been positioned onto glass coverslips in 24-well plates (density: 5 × 10³ cells/properly) and left to stick for twenty-four h. After 24 h, the cells have been mounted in 4% PFA, rinsed utilizing PBS, and permeabilized with 0.4% Triton X-100. The cells have been then blocked with 5% FBS and incubated with main antibodies particular for CD4 and CD8. Following incubation with main antibodies, the cells underwent remedy with CY3-labeled goat anti-rabbit IgG secondary antibodies. Mobile photos have been captured utilizing a scanner (Pannoramic MIDI, 3DHISTECH, Hungary).

ELISA assays

ELISA assays have been performed utilizing particular ELISA kits. Mouse sera have been collected, and the concentrations of cytokines together with TNF-α, IFN-γ, IL-1, IL-2, IL-6, IL-10, and granzyme B have been decided utilizing the respective ELISA kits. Focus measurements have been analyzed utilizing the Tecan-Spark Multimode Microplate Reader.

Serum biochemical evaluation

Biochemical assay kits have been employed to research the mouse sera. The focus of aspartate aminotransferase (AST), alanine aminotransferase (ALT), creatinine (CRE), and urea, which function markers of kidney and liver operate, have been decided with an automatic biochemical analyzer.

Statistical evaluation

We used GraphPad Prism 8.0 software program for statistical analyses, which have been carried out utilizing one-way evaluation of variance (ANOVA) or t-tests. The associated information have been proven because the Imply ± Commonplace Deviation (SD) of at the very least 3 separate assays. *imply p < 0.05; ** imply p < 0.01; *** imply p < 0.001; NS imply not vital.
