Design and building of MnCO/Ce6@H-MnO₂

The artificial course of and particulars of MnCO/Ce6@H-MnO₂ nanoparticles are proven in Figs. 1a and 2a, whereby H-MnO₂ have been firstly obtained in keeping with the basic templating etching methodology [29], adopted by the co-loading of Ce6 and Mn₂(CO)₁₀. Monodispersed silica nanoparticles (MSNs) as templates present a mean particle dimension at 180 nm (Determine S1), which determines the dimensions of final H-MnO₂. After response with potassium permanganate (KMnO₄) resolution, MnO₂ parts are intercalated to acquire SiO₂@MnO₂ with a diameter of 200 nm. Subsequently, the H-MnO₂ nanospheres are obtained by eradicating SiO₂ parts, and the as-prepared H-MnO₂ have a daily spherical morphology whose shell thickness is ~ 8 nm (Fig. 2b). s-SiO₂ elimination by etching leaves a lot of mesopores with a pore dimension of three.2 nm and concurrently imparts H-MnO₂ with massive floor space (Fig. 2c), offering ample house for accommodating Ce6 and Mn₂(CO)₁₀. The H-MnO₂ carriers have essentially the most possible dimension at 200 nm ~ 300 nm (Fig. 2d). Power diffraction spectrum (EDS) signifies the atomic ratio of Mn/O at 1:2, denoting the + 4 valence of Mn (Determine S2), and X-ray photoelectron spectroscopy (XPS) take a look at additional verifies the valence of Mn atoms (Fig. 2e,f) [4]. The floor Zeta potential varies from s-SiO₂ to s-SiO₂@MnO₂, and additional to H-MnO₂, indicating the profitable synthesis of H-MnO₂ carriers.

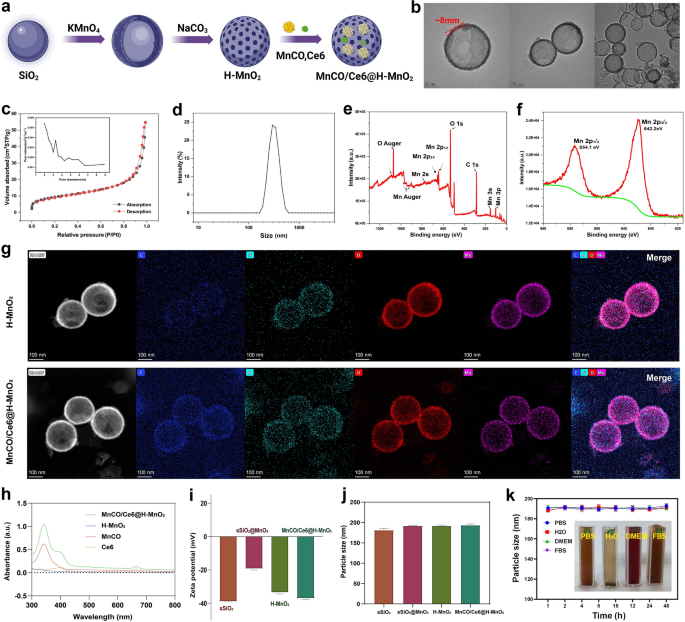

Characterizations of H-MnO₂ and MnCO/Ce6@H-MnO₂. a Schematic for understanding the development steps of H-MnO₂ and MnCO/Ce6@H-MnO₂. b TEM pictures of H-MnO₂ NPs. c N₂ adsorption/desorption isotherms and pore diameter distribution curve (inset) of the H-MnO₂ carriers. d Measurement distribution curve of H-MnO₂ nanoparticles in water. e, f Large-band (e) and narrow-band Mn2p f XPS spectra of H-MnO₂ nanoparticles. g Excessive-angle annular darkish area (HAADF)- scanning transmission electron microscope (STEM) picture and elemental mapping pictures of H-MnO₂ and MnCO/Ce6@H-MnO₂. h UV–vis absorption spectra of Ce6, MnCO, H-MnO₂ and MnCO/Ce6@H-MnO₂. i, j The zeta potential and particle sizes of MnCO/Ce6@H-MnO₂ and its intermediates. okay Time-dependent particle dimension variation profiles of MnCO/Ce6@H-MnO₂ nanoparticles in a number of various media together with PBS, H₂O, DMEM and FBS. Date are introduced as means ± commonplace deviation (s.d.) (n = 3)

After co-loading Ce6 and Mn₂(CO)₁₀, no evident structural and compositional alterations are discovered, as evidenced by the HAADF and mapping pictures of compositional parts (Fig. 2g). The attribute peaks of Ce6 and Mn₂(CO)₁₀ at 400 nm and 330 nm in MnCO/Ce6@H-MnO₂ unveiling the profitable co-entrapment of Mn₂(CO)₁₀ and Ce6 (Fig. 2h), respectively. As properly, the zeta potential declines after co-loading Mn₂(CO)₁₀ and Ce6 (Fig. 2i), whereas the co-loading fails to change the colloidal particle dimension (Fig. 2j), which implies that Mn₂(CO)₁₀ and Ce6 predominantly reside in hole cavity and mesopores in shell of H-MnO₂ carriers. Considerably, the loading capacities of Ce6 and Mn₂(CO)₁₀ will be adjusted based mostly on their feeding ratios to H-MnO₂ carriers (Figures S3 and S4), whereby the most important Mn₂(CO)₁₀ and Ce6 percentages correspond to 40.5% and 32.6%, respectively. As well as, to find out the drug adsorption time, we noticed the drug loading capability of the nanomaterials after numerous soaking durations. The outcomes demonstrated that saturation was achieved inside roughly 24 h. Consequently, this particular drug loading situation was chosen for subsequent experiments (Determine S5).

Intriguingly, such nanoplatforms exhibit excessive colloidal stability in several media on account of no evident alterations within the hydrodynamic dimension (Fig. 2okay). To additional exhibit the fabric’s stability, we’ve included numerical pictures earlier than mixing, after mixing, and after 24 h of blending (Determine S6).These outcomes point out that the H-MnO₂ that includes porous outer layer is an applicable car for transporting anticancer therapeutic brokers.

Endogenous and exogenous stimuli-triggered ROS manufacturing and CO launch

Manganese dioxide (MnO₂)-based nanomaterials are recognized to be unstable and might be dissociated into Mn²⁺ at low pH, which additional reacted with intratumoral H₂O₂ to offer beginning to •OH for implementing CDT [31,32,33,34]. To confirm it, the construction of H-MnO₂ after storage in PBS with various pH values as a perform of time was traced. After 12 h, no evident alterations in construction and morphology recommend the excessive structural stability of H-MnO₂ at pH = 7.4 resolution. In distinction, H-MnO₂ reveals a time-correlated degradation method beneath acidic situations (pH = 5.4) due to the dissociation of H-MnO₂ into Mn²⁺, and extra fragments are discovered because the time elapses (Fig. 3a). Quantitative launch assays reveal the structural collapse of H-MnO₂ within the presence of low pH values and wealthy H₂O₂ permits extra releases of Mn²⁺ and Ce6 launch since H₂O₂-abundant acidic tumor microenvironment favors extra strong redox response (Fig. 3b, c).

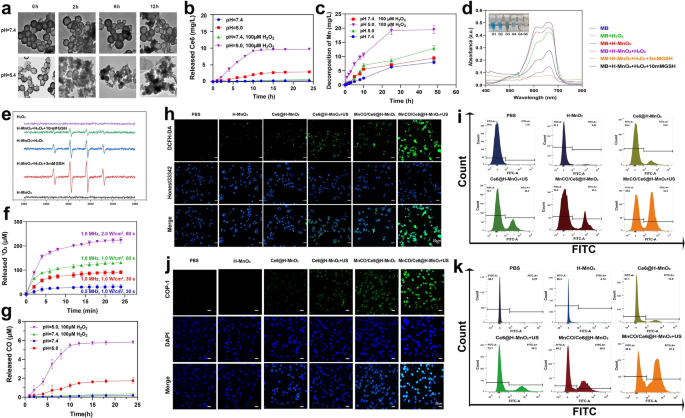

Sequential CDT and SDT-mediated ROS manufacturing and CO launch from MnCO/Ce6@H-MnO₂ in vitro. a TEM pictures of H-MnO₂ after incubation in buffer with totally different pH values (7.4 and 5.4) as a perform of time. b In vitro accumulative launch share of Ce6 from MnCO/Ce6@H-MnO₂ at totally different pH values with various doses of H₂O₂. c The discharge profile of Mn from MnCO/Ce6@H-MnO₂ (5 mg/mL). d UV–Vis absorption spectra of MB that underwent totally different remedies. e ESR spectra of •OH in several response programs. f The discharge of ¹O₂ at totally different Ultrasonic situation. g In vitro accumulative burst quantity of CO from MnCO/Ce6@H-MnO₂ at totally different pH values with various doses of H₂O₂. h Confocal laser scanning microscopic (CLSM) pictures of Lewis cells after numerous remedies for monitoring ROS utilizing DCFH-DA because the ROS probe and Honest33342 as nuclear staining dye. i FCM patterns of Lewis cells that skilled staining with DCFH-DA after above numerous remedies. j CLSM pictures of Lewis cells after numerous remedies for monitoring intracellular CO stage with COP-1 because the CO fluorescence probe. okay FCM patterns of Lewis cells that skilled staining with COP-1 after above numerous remedies. H-MnO₂: 100 μg/mL; US parameters: 1.0 MHz, 1.0 W/cm², 15 s per time with 4 instances for 60 s in whole. Date are introduced as means ± s.d. (n = 3)

H₂O₂ and GSH ranges are increased in tumors than in regular tissue on account of inadequate blood replenishment inside strong tumors [35, 36]. Impressed by it, Fenton-like response mediated by Mn²⁺ is inside straightforward attain. To confirm it, the power of Mn²⁺ to induce CDT by changing H₂O₂ into •OH to degrade methylene blue (MB) was assessed. A drastic drop within the attribute peak of MB is discovered upon response with H₂O₂ for 30 min, demonstrating •OH manufacturing and CDT incidence that induces MB decolorization. Particularly after including 3 mM glutathione (GSH), extra •OH manufacturing accounts for the whole shade recession and the bottom absorbance of MB since GSH can promote H-MnO₂ decomposition into Mn²⁺ to set off Fenton-like response. Nevertheless, when the GSH dose is elevated to 10 mM, extreme GSH depletes the generated •OH, thereby inhibiting the oxidation of MB by •OH and ensuing within the presence of unoxidized MB. (Fig. 3d). Comparable outcomes are obtained utilizing electron spin resonance (ESR) know-how, whereby the attribute ESR peak of •OH is considerably enhanced within the group of H-MnO₂ + H₂O₂, and reaches the very best stage when including 3 mM GSH, however lower within the group of 10 mM GSH due to the extreme GSH-arised ROS exhaustion (Fig. 3e).Subsequently, the Ce6-mediated SDT course of was evaluated, and the manufacturing of ¹O₂, a trademark of SDT, was monitored utilizing the singlet oxygen sensor inexperienced (SOSG). Greater ultrasound energy density and longer remedy time have been utilized to reinforce the technology of ¹O₂, demonstrating the incidence of sonocatalytic course of(Fig. 3f). Due to the big high quality of ROS manufacturing, the response between ROS and Mn₂(CO)₁₀ is inspired since ROS together with ¹O₂ and OH is supplied with a stronger oxidation means. Outcomes additionally present that the acidic and H₂O₂-rich situations help essentially the most ROS manufacturing to stimulate extra CO launch from MnCO/Ce6@H-MnO₂ (Fig. 3g), efficiently switching the partial short-lived ROS to long-lived CO, which is able to enhance the anti-tumor effectivity of ROS-based remedy. So as to mitigate the potential impression of ultrasound on carbon monoxide launch, we’ve included experimental determine S7 as extra proof to substantiate that ultrasound doesn’t induce Mn₂(CO)₁₀ liberation.

Within the cellular-level experiments, additional monitoring on ROS and CO ranges have been carried out. A ROS indicator, 2′,7′-Dichlorodihydrofluorescein diacetate (DCFH-DA) was used [37], and the MnCO/Ce6@H-MnO₂ + US harvest the strongest ROS sign, suggesting essentially the most ROS accumulation by way of the CDT and SDT processes (Fig. 3h). Noticeably, Mn₂(CO)₁₀ loading offers extra Mn supply to set off CDT, ensuing extra ROS, as evidenced by the comparability between Ce6@H-MnO₂ and MnCO/Ce6@H-MnO₂. Quantitative outcomes additionally replicate the variation development of ROS stage by way of move cytometry (FCM), whereby ROS-positive cells enhance and the remedy with MnCO/Ce6@H-MnO₂ + US reaches the very best ROS stage (Fig. 3i). Afterwards, a classical carbon monoxide fluorescence probe (COP-1) was adopted to look at the intracellular ROS-catalyzed carbon monoxide manufacturing. The fluorescence depth regularly will increase because the ROS stage rises, and the MnCO/Ce6@H-MnO₂ + US group harvest the very best inexperienced fluorescence sign, represented essentially the most CO contents, which will be attributed that essentially the most ROS accumulation stimulated essentially the most decomposition of Mn₂(CO)₁₀ into CO (Fig. 3j, S8, S9). Aside from it, FCM evaluation was used to additional quantitatively look at CO launch, and an identical outcomes are obtained (Fig. 3okay). All these outcomes present dependable and ample evidences of resolving the 2 issues that ROS-based anti-tumor remedy encounters: maximumly elevating ROS stage by way of the SDT and CDT mixed technique and prolonging the half-life by way of switching ROS to CO.

In vitro anti-tumor analysis

Contributed by the considerably-elevated ROS accumulation and CO launch, fascinating anti-tumor outcomes will be anticipated. Previous to assessing it, the in vitro biocompatibility of H-MnO₂ carriers was evaluated on regular L929, TC-1 and Lewis cells by way of the CCK-8 assay. A neglectable cytotoxicity is discovered on three cells beneath impartial and acidic situations despite the fact that H-MnO₂ dose reaches 300 μg/mL (Determine S10), denoting the wonderful biosafety of H-MnO₂ nanoplatforms. This phenomenon additionally suggests the presence of heterogeneity-derived insufficient H₂O₂ in Lewis cells, leading to poor CDT course of. This level has been validated in ROS assay (Fig. 3h, i) whereby H-MnO₂-mediated CDT alone fails to generate ample ROS when evaluating with Management group.

Relying on the supplementary ROS induced by SDT course of, the MnCO/Ce6@H-MnO₂ + US group acquires essentially the most ROS accumulation and evokes the very best CO launch, thus efficiently inducing essentially the most deaths (over 70%) of Lewis cells by way of FCM evaluation (Fig. 4a). Past that, CCK8 assessments have been adopted to additional affirm this level. After totally different remedies, the constructed nanoplatforms exert the strongest killing impact on mouse tumor cells (Lewis cells), however don’t have any influences on regular L929 cells (Fig. 4b). Comparable outcomes are additional obtained by way of the calcein AM/PI co-staining assessments. A big space of pink fluorescence sign illuminates the Lewis cells in MnCO/Ce6@H-MnO₂ and Ce6@H-MnO₂ + US teams after 24 h of processing (Fig. 4c), representing the lifeless cells, which was additional confirmed by quantitative evaluation to trigger tumor cell loss of life(Determine S11). Particularly, nearly all Lewis tumor cells are lifeless upon remedy with MnCO/Ce6@H-MnO₂ + US, however the remedy fails to kill L929 cells (Determine S12a), indicating the wonderful security and remedy precision.In the meantime, we carried out verification of the mRNA transcription ranges and protein expression ranges of apoptosis-related genes via RT-qPCR and Western blot, aiming at present additional affirmation of the fabric’s security (Determine S12b-d).

In vitro anti-tumor evaluations based mostly on the maximumly-elevated ROS accumulation and long-lived CO launch cascade catalysis results. a FCM knowledge for analyzing annexin V-FITC/PI-stained Lewis cells after present process numerous remedies and evaluating their apoptosis. b Relative viabilities of Lewis and L929 cells after numerous remedies. c CLSM pictures of calcein-AM and PI co-stained Lewis cells after totally different remedies. d Relative mRNA transcription ranges of Bcl-2, Bax and Caspase-3 in Lewis cells that underwent various remedies. e Western blot bands of Bcl-2, Bax and Caspase-3 expression in Lewis cells that underwent various remedies. Observe, H-MnO₂: 100 μg/mL; US parameters: 1.0 MHz, 1.0 W/cm², 15 s per time with 4 instances for 60 s in whole. Knowledge introduced as imply ± s.d. (n = 3). The statistical significance of variations was carried out with a Pupil’s t-test, and ***P < 0.001

Mechanistic explorations

To grasp the killing mechanism, real-time quantitative polymerase chain response (RT-qPCR) survey was firstly harnessed to hint mRNA transcription stage of some pivotal apoptosis-associated genes. Bcl-2 mRNA expression is down-regulated in all handled teams, and the most important decline magnitude happens to the MnCO/Ce6@H-MnO₂ + US group (Fig. 4d). In the meantime, MnCO/Ce6@H-MnO₂ + US triggers the very best mRNA transcription stage of pro-apoptotic genes together with Bax and Caspase-3 (Fig. 4d). Western blot (WB) assays additional clarifies the apoptotic signaling pathway (Fig. 4e). The remedy of MnCO/Ce6@H-MnO₂ + US harvests essentially the most upregulation of Bax and Caspase-3 proteins and coincidently considerably instigates Bcl-2 downregulation, and this result’s in accordance with RT-qPCR evaluation.

So as to additional uncover the signaling pathway, extra systematic examinations have been carried on, and RNA sequencing and bioinformatics evaluation have been applied to discover the doable motion mechanisms. A big distinction in RNA stage expression among the many PBS, Ce6@H-MnO₂ + US and MnCO/Ce6@H-MnO₂ + US teams is discovered (Fig. 5a), and Fig. 5b, c clearly present the considerably differential gene profiles between the MnCO/Ce6@H-MnO₂ + US and PBS teams. The classification and enrichment evaluation of differential genes in keeping with Gene Ontology (GO) / Kyoto Encyclopedia of Genes and Genomes (KEGG) present that the expression of mitochondrial function-related genes in experimental group tremendously varies compared to that within the management group (Fig. 5d–g). Intimately, Akt signaling pathway is activated, and the down-stream targets together with AKT-1, Nrf-2 and HMOX-1 are extremely expressed after the activated genomic communication. This consequence reveals that the remedy system might activate the Akt signaling pathway to induce apoptosis. Moreover, the molecular proteins of Akt signaling pathway, AKT-1, Nrf-2 and HMOX-1, proceeded to be inspected by WB, and they’re discovered to be extremely expressed within the MnCO/Ce6@H-MnO₂ + US group, which is per the RNA sequencing outcomes (Fig. 5h).

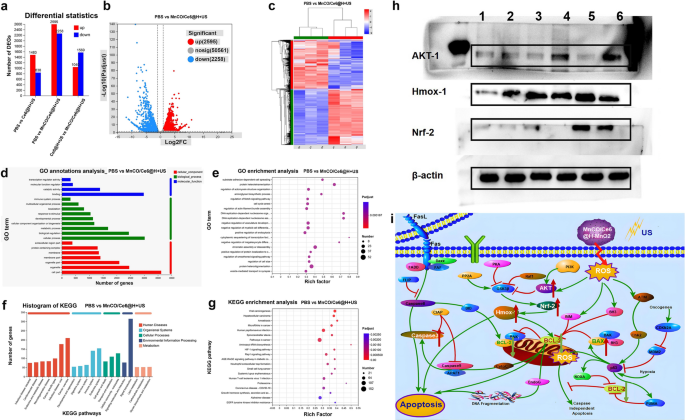

Mechanistic explorations of anti-tumor remedy by way of RNA sequencing and WB evaluation. a Statistical plot of expression variations between 3 teams. b Volcano plot of expression variations between PBS group and MnCO/Ce6@H-MnO₂ + US group. c Heatmap of differentially expressed genes. d GO classification statistics map of differential genes. e Outcomes of GO enrichment evaluation of differential genes. f KEGG classification statistics map of differential genes. g Outcomes of KEGG enrichment evaluation of differential genes. h WB bands of AKT-1, HMoX-1 and NRF-2 proteins in Lewis cells after experiencing various remedies. i Signaling pathways of such a maximumly-elevated ROS accumulation and long-lived CO launch cascade catalysis-unlocked anti-tumor remedy. H-MnO₂: 100 μg/mL; US parameters: 1.0 MHz, 1.0 W/cm², 15 s per time with 4 instances for 60 s in whole

Collectively, the detailed signaling pathway of such a maximumly-elevated ROS accumulation and long-lived CO launch cascade catalysis-unlocked anti-tumor remedy is printed after taking all above collectively, as proven in Figs. 1b and 5i. The synthesized MnCO/Ce6@H-MnO₂ in an acidic surroundings can set off a cascade of reactions that promotes the technology of •OH and ¹O₂ by way of enhanced CDT and SDT processes, thereby stimulating long-lived CO launch by way of ROS-based redox response with Mn₂(CO)₁₀ and transforming the genomic instability-induced tolerance to ROS remedy. By activating these broken mitochondria, the launched CO and ROS resulted in Akt signaling pathway activation represented by AKT-1, Nrf-2 and HMOX-1, thereby enhancing the therapeutic effectivity. Most likely, there are different potential rising pathways or cell subtypes that manipulate the CO/ROS anti-tumor course of because of the tumor spatial–temporal heterogeneity, which, nonetheless, can’t be discerned because of the limitation of frequent RNA-Seq know-how. Thankfully, the unwavering developments in single-cell evaluation know-how have offered indispensable help for cutting-edge medical scientific exploration [38, 39], which is able to reveal extra anti-tumor mechanisms of this endogenous and exogeneous stimuli-triggered cascade catalysis methodology.

In vivo anti-tumor analysis based mostly on MnCO/Ce6@H-MnO₂ nanoplatforms

The in vitro cascade catalytic therapeutic penalties based mostly on the engineered MnCO/Ce6@H-MnO₂ nanocatalysis encourage the in vivo Lewis lung most cancers recession. The detailed experiment protocol is drawn (Fig. 6a), and the frequent intravenous administering for lung most cancers in clinics was used because it outperformed atomization absorption in evading exhalation-arised materials loss and pulmonary mucosa and dense blood barriers-inhibited supply. Firstly, in vivo biodistribution of nanoplatforms was monitored via labeling MnCO/Ce6@H-MnO₂ nanoparticles with Cy5.5 since excessive accumulation of nanoplatforms in tumor is the premise of buying glorious remedy outcomes. Outcomes clearly discover that though the buildup stage of MnCO/Ce6@H-MnO₂ firstly will increase and subsequently regularly decreases inside 72 h after injection (Fig. 6b), the retention in tumor remains to be stored at a lot increased stage after 24 h post-injection despite the fact that the nanoplatforms in different organs are eradicated (Fig. 6b, c). Correspondingly, semi-quantitative fluorescence picture evaluation exhibits that Cy5.5 fluorescence sign is robust after 2 h post-injection on the web site of tumor in MnCO/Ce6@H-MnO₂ handled mice, and reaches the most important sign at 12 h (Determine S13). We additionally decided the biodistribution of MnCO/Ce6@H-MnO₂ in vivo at numerous time factors post-intravenous injection utilizing ICP-AES evaluation. Experimental outcomes reveal that the fabric accumulates quickly in regular organs (coronary heart, liver, spleen, lungs, and kidneys) inside 2–4 h post-injection, however is subsequently metabolized. After 48 h post-injection, the Mn stage in all regular organs returns to that at pre-injection and approaches baseline ranges (Fig. 6d and S14). In distinction, there’s a gradual enhance in materials accumulation at tumor websites over time, which peaks at round 24 h and stays comparatively a excessive stage till 48 h. These outcomes additional underscore the highly-effective supply and accumulation properties of this materials particularly in tumors.

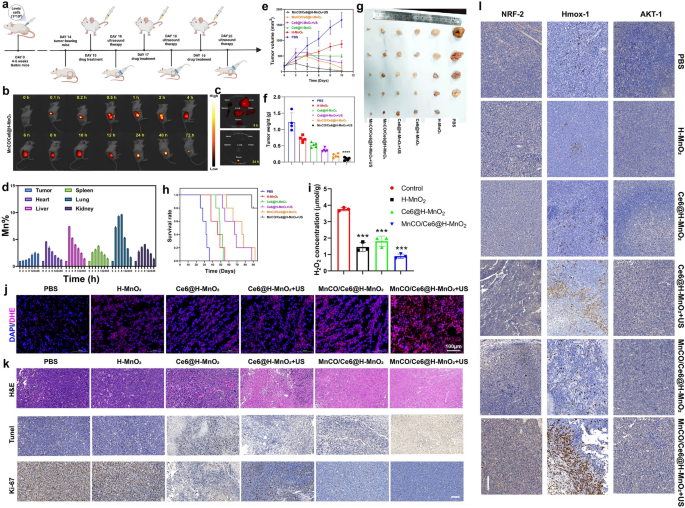

In vivo anticancer remedy analysis on the mix of the maximumly-elevated ROS accumulation with long-lived CO launch cascade catalysis-unlocked anti-tumor remedy. a Schematic illustration of anticancer experimental procedures on the animal mannequin. b In vivo time-correlated fluorescence pictures of Lewis tumor-bearing mice after intravenously administering Cy5.5-MnCO/Ce6@H-MnO₂ (2 mg/kg equal Cy5.5). c Ex vivo fluorescence pictures of tumor, coronary heart, liver, spleen, lung and kidney harvested from MnCO/Ce6@H-MnO₂-treated mice at 8 h and 24 h, respectively. d Time-dependent Mn ranges in tumor and regular organs that have been decided by ICP-AES. Error bars point out commonplace deviation (n = 3). e Time-correlated tumor quantity variation profiles after totally different remedies. f, g Tumor weights (f) and digital pictures (g) after the tip of the experimental interval in various remedy teams. h Surviving curves of Lewis tumors-bearing mice in numerous remedy teams (n = 5). i H₂O₂ ranges in tumor that skilled totally different remedies. Error bars point out commonplace deviation (n = 3). j CLSM pictures of DAPI&DHE co-stained tumor slices after totally different remedies for monitoring ROS stage utilizing ROS indicator (i.e., DHE), and scale bar: 100 μm. okay Histological and immunohistochemical pictures of H&E, TUNEL, and Ki67 assessments for the remoted tumor sections after totally different remedies, and Scale bar: 50 μm; l Histological and immunohistochemical evaluation of AKT-1, Hmox-1, NRF-2 assessments for the remoted tumor sections after totally different remedies, and Scale bar: 100 μm. H-MnO₂ focus: 5 mg/kg; ultrasound parameters: 1.0 MHz, 1.0 W/cm², 15 s per time with 8 instances for 120 s in whole. Knowledge introduced as imply ± s.d. (n = 5). The mice in all experimental teams have been euthanized and sampled on the twenty third day following injection of tumor cells. Furthermore, image markers have been employed to point cases of untimely euthanasia ensuing from speedy tumor development, in accordance with rules of animal ethics.The statistical significance of variations was carried out with a Pupil’s t-test, and ****P < 0.0001

Relying on the excessive accumulation, a major shrinkage after remedy is discovered, and the MnCO/Ce6@H-MnO₂ + US group receives the most important tumor inhibition price (94.3%) (Figs. 6e and S15), which is far increased than MnCO/Ce6@H-MnO₂ (77.2%) and Ce6@H-MnO₂ + US (55.7%). After sacrifice on the finish of experimental interval, tumors have been collected, photographed and weighed. Tumor weights and corresponding digital pictures of consultant mice in every group additional exhibit that the MnCO/Ce6@H-MnO₂ + US remedy considerably inhibits tumor development, ensuing within the smallest tumor weight and quantity (Fig. 6f, g), with no important variation in physique weight noticed (Determine S16). Additional, the survival price of handled mice was recorded, and the MnCO/Ce6@H-MnO₂ + US group makes an enormous step to delay the survival time (Fig. 6h), suggesting that the constructed nanotherapeutic system exerts the extraordinarily pivotal results on lung most cancers recurrence inhibition and prognosis enchancment in mice. To find out whether or not the H₂O₂ focus is ample for H-MnO₂-induced CDT, the H₂O₂ ranges have been traced. It’s clearly discovered that the focus of H₂O₂ in tumor is roughly 4 μmol/g, however after remedies with H-MnO₂-contained nanoplatforms, the H₂O₂ stage considerably declines (Fig. 6i), suggesting the H₂O₂ response with H-MnO₂. This consequence additionally validates that the H₂O₂ stage in Lewis lung most cancers is ample for triggering CDT, which is per earlier studies [40, 41]. Subsequently, in vivo ROS inspection was applied and outcomes reveal that the depleted H₂O₂ is transformed into ROS in H-MnO₂ group. Extra considerably, the SDT/CDT course of in MnCO/Ce6@H-MnO₂ + US group stimulates essentially the most ROS manufacturing, which thus is anticipated to favor extra CO beginning by way of the cascade catalysis course of (Fig. 6j).

To determine the therapeutic rationales, tumor sections have been inspected after staining with hematoxylin and eosin (H&E), TUNEL, and Ki-67 histochemical staining after numerous remedies (Fig. 6okay, S17). Essentially the most large-area apoptosis/necrosis areas in H&E-stained pictures, the considerably-enhanced apoptosis in TUNEL-stained pictures, and essentially the most significantly-suppressed cell growth in Ki-67 take a look at are obtained in tumors within the MnCO/Ce6@H-MnO₂ + US group (Fig. 6okay). The picture clearly demonstrates that the excessive expression of the brown space corresponds to a excessive expression of the related protein. Moreover, upon evaluating the outcomes of the experimental group with these of MnCO/Ce6@H-MnO₂ group and Ce6@H-MnO₂ + US group, it’s evident that Ki67, a proliferation-related protein, reveals weak expression within the experimental group whereas there’s a extra important expression of corresponding apoptosis-related proteins, revealing that the sequential remedy can expedite the deaths of most cancers cells and oppose the replication of most cancers cells. Past it, we additional stained the tumor sections with AKT-1, HMOX-1 and NRF-2 antibodies to look at their expression (Fig. 6l, S17). Outcomes present that the protein expressions of AKT signaling pathways together with AKT-1, HMOX-1 and NRF-2 indicators are remarkably up-regulated, which is per in in vitro WB evaluation. It’s noteworthy that the upregulation of pathway-related proteins within the experimental group not solely considerably differed from that within the management group, but in addition exhibited distinct variations in comparison with these within the MnCO/Ce6@H-MnO₂ group and Ce6@H-MnO₂ + US group.The inspiring outcomes additional confirm the mechanism feasibility of such a maximumly-elevated ROS accumulation and long-lived CO launch cascade catalysis-unlocked anti-tumor remedy, that’s, inhibiting the mitochondrial pathway and activating AKT signaling pathway.

To guage the therapeutic security, we carried out H&E staining of coronary heart, liver, spleen, lung and kidney of the injected mice, and outcomes present that there isn’t a proof of great organ harm within the MnCO/Ce6@H-MnO₂ + US remedy group on the examined dose reflecting the great biocompatibility of MnCO/Ce6@H-MnO₂ + US (Determine S18). In the meantime, blood samples have been collected from regular Bala/c mice after intravenous injection of PBS or MnCO/Ce6@H-MnO₂ + US for hematological and blood biochemical assessments. There isn’t a distinguished distinction in serum indexes between the MnCO/Ce6@H-MnO₂ + US group and the traditional mice, additional confirming that the security of MnCO/Ce6@H-MnO₂ (Figs. 7a and b). As well as, cytokines in serology have been decided by enzyme-linked immunosorbent assay (ELISA) and MnCO/Ce6@H-MnO₂ + US is disabled to induce distinguished abnormalities in IL-1b, IL-12, IL-6 and IFN-γ ranges. Though TNF-α is totally different between the 2 teams, the expression stage stays throughout the regular vary. These outcomes additionally show that MnCO/Ce6@H-MnO₂ + US has no important cytokine secretions (Fig. 7c). The buildup of manganese within the physique might result in neurotoxicity. To additional examine the metabolism of service H-MnO₂ within the physique, we carefully monitored the Mn content material within the serum of mice within the remedy group (Determine S19). It was noticed that through the administration interval, there was a slight fluctuation in Mn content material in mouse serum, which elevated in comparison with earlier than administration however nonetheless remained inside regular vary. Across the fourth day after finishing remedy, nearly full metabolism of manganese in serum was noticed. On day 7 after remedy, we carefully monitored serum manganese ranges and concurrently euthanized mice to measure Mn content material of their coronary heart, liver, spleen, lungs, and kidneys. The outcomes confirmed no statistically important distinction between manganese ranges in these organs in comparison with these of regular mice(Determine S20).These organic results initially show that MnCO/Ce6@H-MnO₂ + US has glorious biocompatibility, glorious biosafety and no apparent poisonous negative effects since their parts have been validated to be secure [42,43,44], holding excessive potentials in scientific translation.

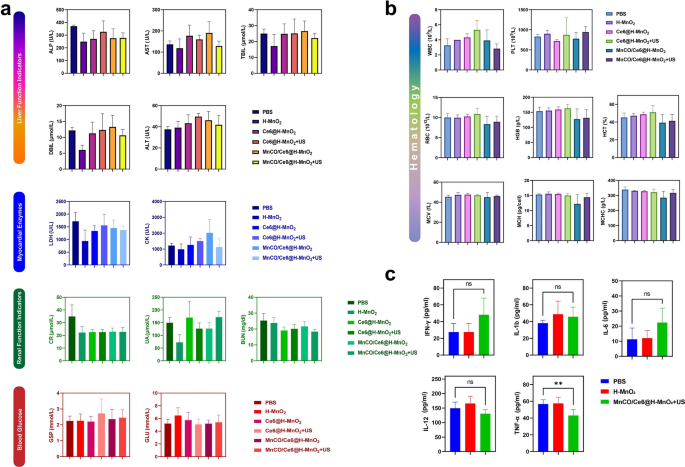

The factors for evaluating biosafety in vivo. a Blood biochemistry evaluation of balb/c mice that experiencing numerous remedy choices. ALP: alkaline phosphatase; AST: aspartate aminotransferase; TBIL: whole bilirubin; DBIL: direct bilirubin; ALT: alanine aminotransferase; LDH: lactic dehydrogenase; CK: creatine kinase; CR: blood creatinine; UA: uric acid; BUN: urea nitrogen; GSP: glycosylated serum protein; GLU: glucose. b Hematology knowledge of balb/c mice that experiencing numerous remedy choices. WBC: white daring cell; PLT: platelet; RBC: pink blood cell; HGB: hemoglobin; HCT: hematocrit; MCV: mead corpuscular quantity; MCH: mead corpuscular hemoglobin focus; MCHC: imply corpuscular hemoglobin focus. c Serum ranges of some typical cytokines in balb/c mice handled with PBS, H-MnO₂ in addition to MnCO/Ce6@H-MnO₂ + US nanoparticles
