Design technique for nanoplatform Cy-NMNO@SiO2
Scheme 1a outlines the synthesis of nanoplatform Cy-NMNO@SiO2. All synthesized compounds had been confirmed by 1H NMR, 13C NMR and liquid chromatography ion lure mass spectrometry (LC-MS). The synthesis particulars of the nanoplatforms are proven within the Supporting Data. Usually, hypoxia is among the main therapeutic obstacles to PDT, whereas hyperoxia promotes ROS manufacturing and enhances the killing impact on tumors and micro organism. Due to this fact, we first designed a fluorescent probe, Cy-NMNO, which might launch each NO and photosensitizer below near-infrared laser irradiation for the therapy of tumors and antibacterials and to ameliorate the hypoxia downside in photodynamic remedy (Scheme 1b). On this scheme, we selected a benzoheptamethine cyanine dye with a benzo-indole heterocycle as a photosensitizer, which is because of the truth that when the heterocycle within the construction of the benzoheptamethine cyanine dye is modified from an indole heterocycle to a benzo-indole heterocycle, the character of the push-pull digital construction of the a benzoheptamethine cyanine dye is modified. This impacts the conjugated nature of the phorbol ester system, leading to a purple shift within the absorption and fluorescence spectra, which provides it an extended near-infrared excitation wavelength and improves the shortcomings of the normal laser gentle scattering. And it might probably penetrate deeper tissues and thus excite extra photosensitizer-enriched areas. We then mixed the nitrosamine group with the fluorophore Cy to acquire the compound Cy-NMNO with a excessive molar absorption coefficient and near-infrared (NIR) emission.

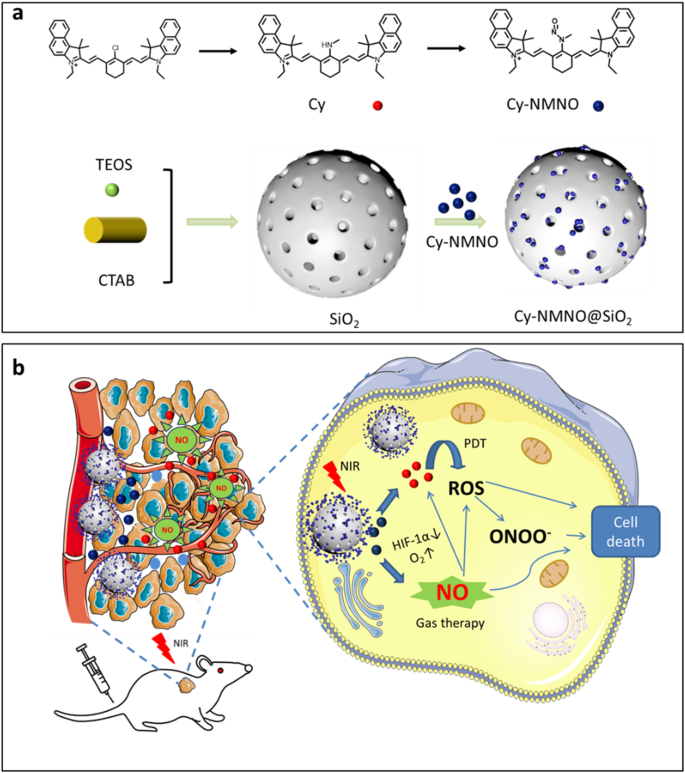

(a) Schematic illustration of the synthesis route of Cy-NMNO@SiO2. (b) The mechanism of the Cy-NMNO@SiO2 for the PDT/GT
As well as, MSN particle dimension controls mobile interactions in addition to distribution and elimination. It has been reported within the literature that the optimum MSN dimension to advertise accumulation on the tumor web site and supply an extended circulating half-life is within the vary of fifty–300 nm. Smaller MSNs (lower than 50 nm) have poor porosity, whereas bigger MSNs (better than 300 nm) have impaired diffusion into the tumor mesenchyme [24]. Due to this fact, we synthesized MSNs with sizes round 50–100 nm for loading small molecule photosensitizers.
Characterization of Cy-NMNO@SiO2
Cy-NMNO@SiO2 was then characterised intimately. Transmission electron microscopy (TEM) imaging and DLS evaluation confirmed that the dimensions of Cy-NMNO@SiO2 was about 50–100 nm with good particle homogeneity (Fig. 1a and b). The spectral properties of Cy@SiO2, Cy-NMNO@SiO2 had been investigated below simulated physiological situations (10 mM HEPES, pH 7.4). As proven in Fig. 1c, Cy@SiO2 has a robust absorption round 800 nm, which is favorable for its utility in NIR laser-based photodynamic remedy. After substitution and nitration of the uncovered amino group, the electron-donating means of the amino group is significantly diminished, resulting in the PET course of accompanied by fluorescence burst. We hypothesized that below the excitation of 808 nm gentle, the uniform breakage of the N-N bond results in the departure of the substituent and the fluorescence activates. To confirm the position of Cy-NMNO@SiO2 in response to NIR laser gentle, we divided the Cy-NMNO@SiO2 answer into two teams. The fluorescence activation habits within the NIR was verified by fluorescence spectroscopy. As proven in Fig. 1d, the fluorescence emission depth of Cy-NMNO@SiO2 answer after NIR laser irradiation was considerably enhanced, reaching the utmost emission wavelength at 810 nm. Each the utmost absorption wavelength and fluorescence emission wavelength had been situated within the near-infrared area. Vitality dispersive X-ray spectroscopy (EDS) elemental mapping (Fig. 1e) confirmed that Cy-NMNO is uniformly distributed in mesoporous silica.

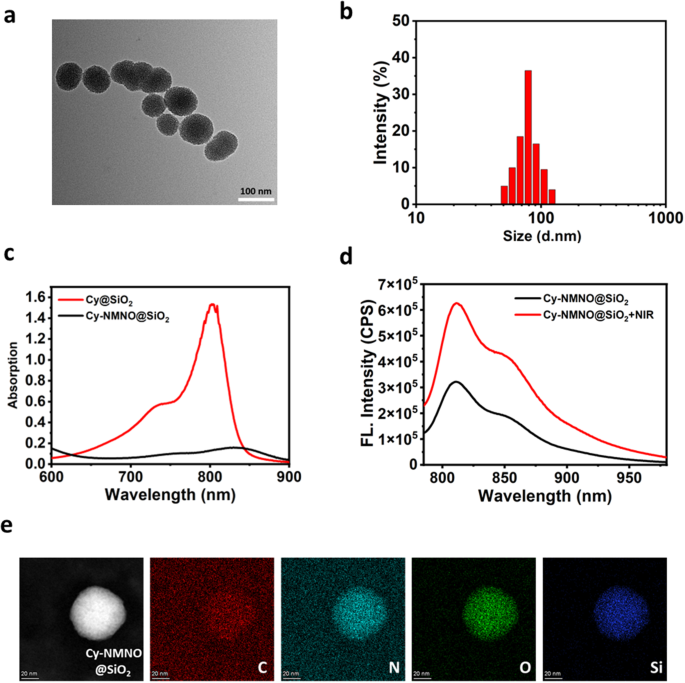

(a) A consultant TEM picture for Cy-NMNO@SiO2. (b) DLS information of the Cy-NMNO@SiO2. (c) Absorption spectra of Cy@SiO2, Cy-NMNO@SiO2. (d) After laser irradiation (5 min, 808 nm), the fluorescence emission spectrum of Cy-NMNO@SiO2 modified. All information had been collected in HEPES (pH 7.4) at 37 ℃ (λex = 730 nm, λem = 810 nm). (e) EDS elemental mapping of Cy-NMNO@SiO2. Scale bar = 20 nm
Examine on the activation and launch of Cy-NMNO@SiO2 in vitro
To reveal that our synthesized nanoplatforms have the operate of activation below NIR gentle irradiation, we imaged the reside cells with confocal laser scanning microscopy (CLSM) to watch the activation course of. Human malignant melanoma cells (A375 cells) had been handled with Cy-NMNO@SiO2 (6 µg/mL) for two h, washed, and subjected to NIR laser irradiation (808 nm, 5 min, 1.5 W cm-2). The cells had been then washed 3 times with Dulbecco’s modified eagle medium (DMEM) to take away extra Cy-NMNO@SiO2. As proven in Fig. 2a, there was virtually no fluorescence within the cell group irradiated by NIR laser alone with the addition of Cy-NMNO@SiO2 alone. In distinction, after incubation and irradiation with the addition of Cy-NMNO@SiO2, vital fluorescence appeared within the cells, and the fluorescence sign turned stronger and stronger. The imply fluorescence depth was proven in Fig. 2d. These outcomes indicated that the nanoplatform was capable of ship the probe into tumor cells and activate it below NIR laser irradiation. We additional validated the obtained outcomes by circulate cytometry evaluation Fig. 2c.
Impressed by the well-characterized cascade response of Cy-NMNO@SiO2 in answer, in vitro assays had been carried out to visualise the intracellular NO and 1O2 manufacturing in Cy-NMNO@SiO2 cells by laser confocal microscopy utilizing DAF-FM (a business NO probe) and single-linear-state oxygen inexperienced sensor (SOSG) fluorescent probes, respectively, to visualise the Cy- NMNO@SiO2 intracellular 1O2/NO manufacturing. Because of this, each the NIR group alone and the cells handled with Cy-NMNO@SiO2 alone confirmed fluorescence intensities much like the background sign (Fig. 2b). Nonetheless, within the Cy-NMNO@SiO2 + NIR group had enhanced fluorescence, which indicated that the probe was successfully launched to supply 1O2 with NO below 808 nm near-infrared laser irradiation, and 1O2 was produced by photosensitizer below laser irradiation. As well as, it has been proven within the literature that NO can react with superoxide anions within the tumor setting to type the oxidant peroxynitrite (ONOO–), which stimulates the manufacturing of matrix metalloproteinases (MMPs) within the tumor mesenchyme, thereby degrading nearly all the collagenous elements of the ECM and facilitating the penetration of therapeutic brokers on the tumor web site [25]. Due to this fact, we used TPNIR-FP detection to point out that ONOO– was certainly produced in the course of the course of. These outcomes point out that the photoactivation of Cy-NMNO@SiO2 in residing cells is profitable and produces potent class I and sophistication II responses because of the photorelease of ·NO, offering the idea for a synergistic anti-hypoxic photodynamic impact. The above outcomes point out that the fracture response properties of the probe can particularly reply to NIR gentle, and that fracture produces each photosensitizer and NO, and within the course of, moreover generates ONOO–, which reinforces the phototoxicity of Cy. In the meantime, we quantitatively analyzed the fluorescence depth in Fig. 2d and 2e utilizing ImageJ software program.1O2, NO and ONOO– had been all considerably enhanced below laser irradiation. Imply fluorescence depth (Imply) = Sum of fluorescence intensities within the space (IntDen) / Space of the area (Space).

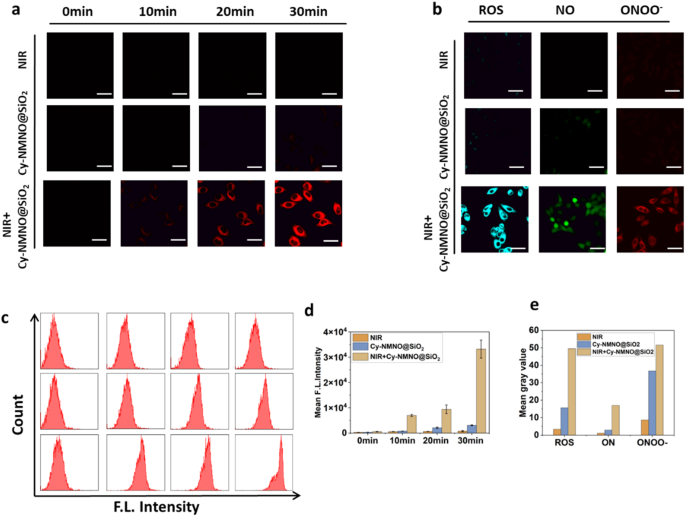

(a) Images of fluorescence brightness at totally different incubation instances below laser confocal microscopy for the NIR group, Cy-NMNO@SiO2 group, and the NIR + Cy-NMNO@SiO2 group. Scale bar = 20 μm. (b) ROS, NO and ONOO– manufacturing in A375 cells had been detected by SOSG, DAF-FM, TPNIR-FP probes, respectively. Scale bar = 20 μm. (c) The circulate cytometry evaluation of (a). (d) The imply grey worth of (a). (e) The imply grey worth of (b). Imply fluorescence depth (Imply) = Sum of fluorescence intensities within the space (IntDen) / Space of the area (Space)
In line with the above experimental outcomes, Cy-NMNO confirmed glorious NO and 1O2 manufacturing efficiency. Theoretical calculations had been used to disclose the impact of the molecular construction of Cy-NMNO on the NO and 1O2 manufacturing. The power of NO to dissociate from Cy-NMNO below NIR irradiation determines the NO content material. The dissociation means might be evaluated by the bond dissociation power (BDE) of N-NO. The bond dissociation power (BDE) for Cy-NMNO was calculated as 32.8 kcal/mol (Determine S2). The photon power of 808 nm infrared gentle is 35.4 kcal/mol, which might understand N-NO bond breaking of Cy-NMNO below NIR irradiation. As well as, we additionally calculated the N-NO BDE of the molecule reported within the literature. The outcomes confirmed that the worth of BDE is carefully associated to the molecular construction (Determine S2). Due to this fact, screening appropriate photosensitizers can regulate the NO launch efficiency by affecting BDE of N-NO bond, which supplies a reference for the synthesis of complicated.

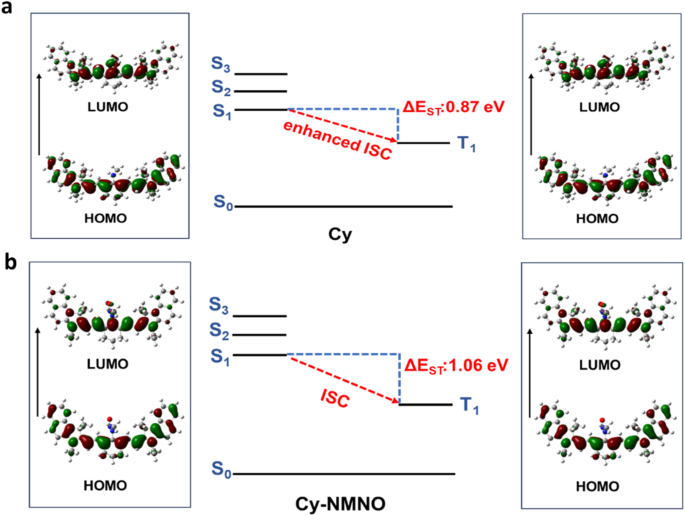

Chosen frontier molecular orbitals concerned in excitation and singlet/triplet excited states of Cy (a), and Cy-NMNO (b)
The N-NO bond of the Cy-NMNO breaks below NIR gentle irradiation, releasing the small molecule photosensitizer Cy. The efficiency distinction between Cy-NMNO and Cy for 1O2 era will have an effect on the PDT efficiency. Environment friendly intersystem crossing (ISC) gives the chance to enhance the triplet excited state yield, which is extremely fascinating for environment friendly 1O2 era [26]. The small ΔEST (the power hole between singlet excited state and triplet excited state) is favor to enhance the ISC course of. TDDFT was used to research the ΔEST variations between Cy and Cy-NMNO [27]. The ΔEST worth of Cy and Cy-NMNO had been 0.87 eV and 1.06 eV, respectively (Fig. 3a and b). From the above investigations, Cy produced by releasing NO from Cy-NMNO exhibited smaller ΔEST, which is extra conducive to selling the ISC course of and 1O2 era. The wonderful 1O2 yield improved the PDT efficiency.
Cytotoxicity assay and photoinduced cytotoxicity
The magnitude of cytotoxicity of nanoplatforms determines whether or not they are often utilized within the clinic or not, subsequently, we examined the cytotoxicity below non-laser irradiation utilizing Cell Counting Equipment-8 (CCK-8 package). First, we divided the cells into three teams, management, Cy@SiO2 group, and Cy-NMNO@SiO2 group. The Management group was left untreated, and the Cy@SiO2, Cy-NMNO@SiO2 teams had been added with 0, 2, 4, 6, 8, 10 µg/mL of Cy@SiO2, Cy-NMNO@SiO2, respectively. As proven in Fig. 4a, after incubation of A375 cells with Cy-NMNO@SiO2 at a focus of 10 µg/mL for twenty-four h, greater than 85% of the cells survived. This proves that our synthesized nanoplatform Cy-NMNO@SiO2 has low cytotoxicity and might be utilized to cell viability. After confirming the nice in vitro biosafety of Cy-NMNO@SiO2, we proceeded to judge its tumor cell killing means. As might be seen in Fig. 4b, the cell survival price of the management group didn’t considerably lower below 808 nm laser irradiation (1.5 W/cm2, 5 min). The cytotoxicity of Cy@SiO2, Cy-NMNO@SiO2 confirmed a concentration-dependent sample, and because the focus of Cy@SiO2, Cy-NMNO@SiO2 (0–10 µg/mL) elevated, the survival price of the cells regularly decreased, and the cell survival price was virtually zero when the Cy-NMNO focus was 10 µg/mL. And it may be seen from the determine that the phototoxicity of Cy-NMNO@SiO2 was considerably increased than that of Cy@SiO2 group. This confirms our hypothesis that below NIR laser irradiation, the chemical bond between Cy-NMNO is damaged, producing each Cy and NO. Cy has a photodynamic therapeutic impact, and nitric oxide (NO) binds to the oxygen-binding web site of mitochondria, inhibiting mobile respiration and lowering endogenous O2 consumption, and in addition synergistically enhances the photodynamic remedy efficacy. NO can react with superoxide within the tumor setting to type oxidant peroxynitrite (ONOO–) and synergistically improve the anti-hypoxic photodynamic impact. NO can react with superoxide anions within the tumor setting to type the oxidant peroxynitrite (ONOO–), which synergistically enhances the anti-hypoxic photodynamic impact.

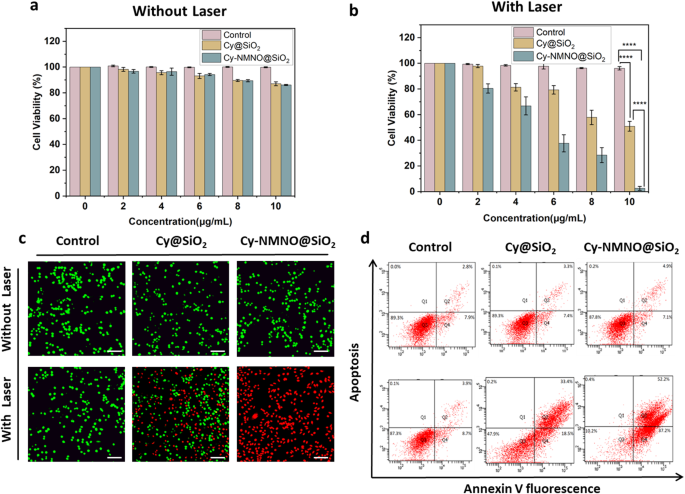

(a) (b) The cytotoxicity of A375 cells handled with PBS, Cy@SiO2, Cy-NMNO@SiO2 below laser irradiation and with out laser irradiation (****P < 0.0001). (c) Calcein AM/PI co-staining imaging of A375 cells handled with PBS, Cy@SiO2, Cy-NMNO@SiO2 below laser irradiation and with out laser irradiation was noticed utilizing laser scanning confocal microscopy. Scale bar = 200 μm. (d) Apoptosis was analyzed utilizing circulate cytometry below laser irradiation and with out laser irradiation in management, Cy@SiO2, Cy-NMNO@SiO2 (808 nm, 1.5 W/cm2, and 5 min)
Subsequent, we proceed to substantiate our hypothesis by Calcein AM/PI Cell Exercise and Cytotoxicity Assay Equipment, Annexin V-FITC Apoptosis Equipment, Western blot, and so on. Calcein/PI Cell Exercise and Cytotoxicity Assay Equipment is a really handy package for the detection of lifeless and alive animal cells based mostly on double fluorescence staining methodology of Calcein-AM (calcineurin) and PI (Propidium Iodide) twin fluorescence staining methodology to detect the lifeless and alive animal cells, which relies on the precept that the 2 probes detect the intracellular esterase exercise and cell membrane integrity, respectively, and thus reply to the cell’s reside and lifeless standing. Calcein AM stained reside cells in inexperienced, whereas Propidium Iodide (PI) stained lifeless cells in purple. As might be seen from the Fig. 4c, within the absence of laser irradiation, all A375 cells had been inexperienced and never lifeless. Whereas some cells within the Cy@SiO2 group died below laser irradiation, virtually all cells within the Cy-NMNO@SiO2 group died. That is in step with the outcomes of our CCK-8 assay, which confirmed that the phototoxicity of Cy-NMNO@SiO2 was considerably increased than that of Cy@SiO2 group. As well as, we additionally verified the outcomes with Annexin V-FITC apoptosis package and statistically analyzed to acquire that the apoptosis price of Cy-NMNO@SiO2 was considerably increased than that of Cy@SiO2 group (Fig. 4d, S5) (P < 0.0001).
It’s well-known that the microenvironment of many stable tumors is hypoxic. Particularly, the fixed consumption of oxygen to generate cell-damaging ROS throughout PDT additional exacerbates tumor hypoxia, severely impeding the era of environment friendly ROS and resulting in suboptimal PDT effectivity [28]. Hypoxia-inducible factor-1α (HIF-1α) is a nuclear transcription issue produced by cells in response to hypoxia and is a serious member of the hypoxia-inducible issue household. It’s usually situated within the cytoplasm, and the α-subunit is quickly ubiquitinated and degraded when the intracellular oxygen partial strain is regular. Nonetheless, below hypoxia, HIF-1α accumulates, translocates from the cytoplasm to the nucleus and binds to the β-subunit, initiating a collection of genes that contribute to the variation of cells to hypoxia, and HIF-1α is the key hypoxia-associated gene [29,30,31]. To confirm the hypoxia tolerance of Cy-NMNO@SiO2, the expression of HIF-1α was detected by Western blot after Cy-NMNO@SiO2 was utilized to A375 cells with totally different irradiation instances. As proven in Fig. 5a, b, c, d and e, the cell-related apoptotic proteins Bax, Caspase-9, Cytochrome C elevated with irradiation time, which proved that our nanoplatform Cy-NMNO@SiO2 did have a therapeutic impact on PDT. Nonetheless, the expression of HIF-1α decreased with irradiation time. This means that our nanoplatform Cy-NMNO@SiO2 can in the end generate NO below NIR laser irradiation. NO, as an necessary vasotension-regulating messenger, can obtain the alleviation of tumor hypoxia [32].

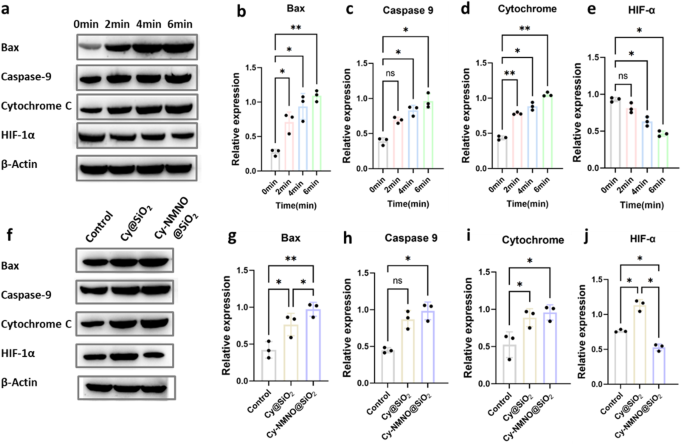

(a) Protein expression of Bax, Caspase-9, Cytochrome C, HIF-1α of A375 cells handled with PBS, Cy@SiO2, Cy-NMNO@SiO2 had been laser at totally different instances utilizing western blot evaluation and utilizing the expression of β-actin as a management. (b) (c) (d) (e) Quantitative evaluation of Bax, Caspase-9, Cytochrome C, HIF-1α expression in (a). (f) Protein expression of Bax, Caspase-9, cytochrome C, and HIF-1α in A375 tumor-bearing mice with numerous remedies, and β-actin expression was used as a management. (g) (h) (i) (j) Quantitative evaluation of Bax, Caspase-9, Cytochrome C, HIF-1α expression in (f)
To reconfirm our hypothesis, we injected totally different therapeutic medicine Cy@SiO2, Cy-NMNO@SiO2 intravenously into the homozygous BALB/c mice utilizing PBS as a management, respectively. As proven within the Fig. 5f, g, h, i and j, the apoptotic protein expression of Cy-NMNO@SiO2 group was considerably increased than that of the management group and the Cy@SiO2 group (P < 0.05), however the expression of HIF-1α was considerably decrease than the management and Cy@SiO2 teams (P < 0.05). These outcomes above recommend that Cy-NMNO@SiO2 on the one hand can generate ample ROS to considerably amplify oxidative stress in vivo for tumor PDT remedy. Nonetheless, within the case of PDT alone, the therapy exacerbates the hypoxic setting on the tumor web site, whereas the exactly managed launch of NO on the tumor web site helps to alleviate the hypoxia on the tumor web site and synergistically enhances the impact of PDT therapy. The above experiments verify that our nanoplatform can certainly obtain the therapy of pores and skin most cancers and enhance the excessive hypoxia on the tumor web site because of the consumption of oxygen by PDT.
Antimicrobial testing
Present medical methods to fight micro organism concentrate on antibiotic remedy. Nonetheless, these methods face growing challenges because of the improvement of drug-resistant micro organism. The period of antibiotic medicine because the mainstay towards dangerous micro organism is reportedly over. Due to this fact, with a purpose to shield public well being, there’s an pressing want for analysis and improvement of progressive antimicrobial brokers with excessive antimicrobial exercise and with out inducing bacterial resistance. Photodynamic remedy (PDT)-based antimicrobial brokers could also be a promising various.
Subsequent, we validated the antibacterial impact of the nanoplatform Cy-NMNO@SiO2. The dilution plate methodology was used to judge the synergistic PDT/NO bactericidal impact of Cy-NMNO@SiO2 towards Gram-positive micro organism (Staphylococcus aureus). Staphylococcus aureus was inoculated in liquid medium of Luria-Bertani (LB) and incubated in a single day at 37 °C in an incubator with shaking. Staphylococcus aureus was randomly divided into three teams, management group, Cy@SiO2 group and Cy-NMNO@SiO2 group, and in line with their groupings, the identical focus of PBS, Cy@SiO2, Cy-NMNO@SiO2 had been added and irradiated (808 nm, 1.5 W/cm2, 5 min) with and with out irradiation, respectively. As proven in Fig. 6a, the variety of colonies within the Cy@SiO2 + NIR-treated group was considerably diminished in contrast with the management, Cy@SiO2 group and Cy-NMNO@SiO2 with out 808 nm laser irradiation. The inactivation price reached 36.4% within the Cy@SiO2 + NIR group (Fig. 6b). Cy, as a photosensitizer, can produce reactive oxygen species, which has a therapeutic impact on photochemotherapy. Within the Cy-NMNO@SiO2 + NIR group, solely a small quantity of micro organism survived, and the inactivation price was as excessive as 94.4%.
Images of bacterial colonies fashioned by (a) S. aureus (c) E. coli based mostly on plate depend methodology. The corresponding bacterial viabilities of b) S. aureus d) E. coli. Handled with PBS, Cy-Cy@SiO2, Cy-NMNO@SiO2 with or without 808 nm laser irradiation (1.5 W cm− 2, 5 min) (****P < 0.0001)
This means that NO was launched from the photosensitizer throughout laser irradiation. NO is a typical lipophilic biosignaling molecule, a broad-spectrum antimicrobial candidate, and its antimicrobial course of doesn’t rely upon the kind of micro organism in contrast with conventional antibiotics. NO is ready to produce further ONOO–, RNS, and so on. in micro organism and the by-products of NO are capable of disrupt bacterial cell membranes attributable to nitrosation and oxidative stress [33]. It additionally induces vital DNA harm, which makes the micro organism extra inclined to wreck and thus has a bactericidal impact. Gram-negative micro organism have a further membrane layer of their cell wall construction in comparison with Gram-positive micro organism, which makes it usually tough for typical PDT brokers to penetrate these micro organism. Nonetheless, our small molecule photosensitizer Cy has a optimistic cost and micro organism have a damaging cost, which might improve the interplay between the photosensitizer and the bacterial outer membrane and enhance its PDT antimicrobial properties. Due to this fact, we equally examined the antimicrobial impact of Cy-NMNO@SiO2 towards E. coli (Gram-negative micro organism). As proven in Fig. 6c, the bacterial development was regular with out NIR laser irradiation, however solely a small quantity of micro organism survived within the Cy-NMNO@SiO2 + NIR group, with an inactivation price of 96.6% (Fig. 6d). This proves that the Cy-NMNO@SiO2 additionally has a very good antibacterial impact on Gram-negative micro organism below NIR gentle irradiation.
In vivo imaging and anti-tumor remedy in tumor-bearing mice
In vivo bioimaging performs a vital position within the correct analysis and therapy of tumors. Since Cy-NMNO can have “off-on” fluorescence activation below near-infrared laser irradiation, we utilized this property to review the in vivo activation of Cy-NMNO@SiO2 in mice. When the tumor quantity of A375 ruffed mice elevated to about 150 mm3, Cy-NMNO@SiO2 was injected by way of the tail vein. The fluorescence sign on the tumor web site of ruffed mice was regularly enhanced after 808 nm laser irradiation. We euthanized the mice at 0 h, 6 h, 12 h, 24 h and 36 h, respectively, and quantitatively analyzed the fluorescence depth of every group by ImageJ software program after being photographed by a fluorescence imaging system. The schematic illustration of therapy route was proven in Fig. 7a. As proven in Fig. 7b, the fluorescence of the tumor tissue appeared 6 h after the intravenous injection of Cy-NMNO@SiO2, reached the utmost depth at 12 h, after which regularly weakened. These information point out that Cy-NMNO@SiO2 might be activated below near-infrared gentle irradiation to supply Cy and understand fluorescence imaging.
To be able to research the therapeutic impact of Cy-NMNO@SiO2 on the mouse pores and skin melanoma mannequin, when the quantity tumor quantity of A375 loaded mice reached about 150 mm3, we randomly divided the loaded mice into 6 teams: PBS group, PBS + Laser group, Cy@SiO2 group, Cy@SiO2 + Laser, Cy-NMNO@SiO2, and Cy- NMNO@SiO2 + Laser teams, 10 mice in every group. We recorded the physique weights and tumor volumes of the mice (at 2-day intervals after irradiation) and calculated the relative tumor volumes of the mice. (Fig. 7c, d, and f). The relative tumor volumes of the PBS + Laser group each elevated by about 5.5-fold, indicating that single laser irradiation had little impact on tumor development.
Though the Cy@SiO2 + Laser group had a sure inhibitory impact on the tumor therapy, the tumor quantity was nonetheless growing regularly, and it failed to attain the impact of fully treating the tumor. Notably, the Cy-NMNO@SiO2 + NIR group confirmed vital tumor inhibition with no regrowth. In the meantime, mixed with the outcomes of Western blot above, Cy-NMNO was proven to be an efficient synergistic PDT-GT tumor therapeutic agent. To be able to additional observe the killing means of Cy-NMNO@SiO2 on tumor tissues after therapy to confirm its anti-tumor impact. We noticed the standing of tumor tissues by hematoxylin & eosin (H&E) staining (Fig. 7e). H&E staining confirmed that the tumor tissue harm in Cy-NMNO@SiO2 + Laser group was apparent, and the efficacy was vital. Whereas PBS, PBS + Laser, Cy@SiO2 group, and Cy-NMNO@SiO2 didn’t present vital tumor harm. The Cy@SiO2 group + Laser group had some therapeutic impact on the tumor, however the therapeutic impact was restricted. In the meantime, with a purpose to discover the in vivo security throughout antitumor therapy, the load of the hormonal mice was recorded in the course of the tumor suppression experiments in hormonal mice, and the mice had been weighed each different day. And the survival price of mice was calculated (Fig. 7e). As proven in Fig. 7c, there was no vital change within the physique weight of all mice, and the mice within the Cy-NMNO@SiO2 + Laser therapy group all the time survived. To be able to show the protection of the nanoplatform once more, we noticed the conventional organs (coronary heart, liver, spleen, lung and kidney) of the surviving mice in Cy-NMNO@SiO2 by sectioning and located that there was no apparent harm to the center, liver, spleen, lungs, kidneys and different organs of the mice. This means that Cy-NMNO@SiO2 has good biosafety within the therapeutic dose vary with negligible negative effects. It may be seen that Cy-NMNO@SiO2 can successfully deal with tumors below near-infrared laser irradiation with out apparent poisonous negative effects.

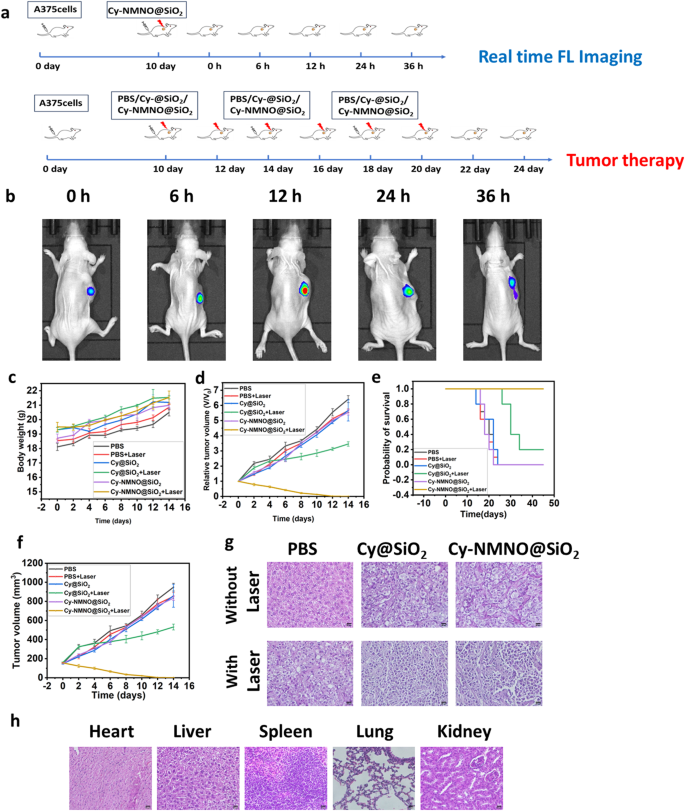

(a) Schematic illustration of therapy route. (b) Actual-time fluorescence imaging in A375 tumor-bearing mice (c) Physique weight change, (d) Relative tumor quantity, (e) Chance of survival, (f) Tumor quantity of A375 tumor-bearing mice with numerous remedies. (g) H&E staining of tumor after numerous remedies. Scale bar = 20 μm. (h) Outcomes of H&E staining of coronary heart, liver, spleen, lung and kidney of surviving mice within the Cy-NMNO@SiO2 + laser therapy group. Scale bar = 20 μm
