The newest in electrical security testing is a excessive DC voltage security analyzer designed for exact measurements and enhanced person safety.

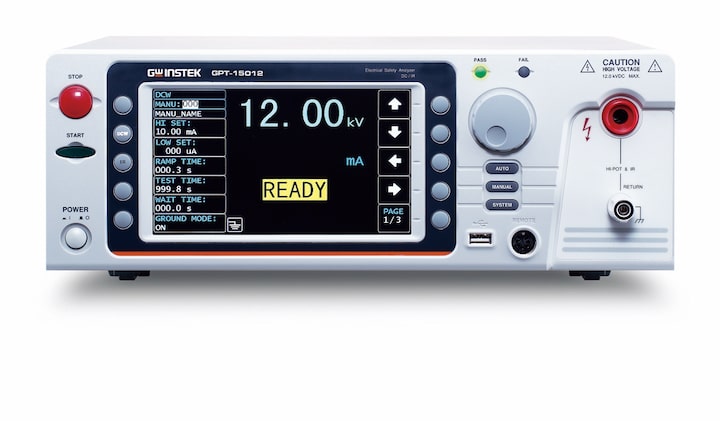

GW Instek has launched a excessive DC voltage security analyzer mannequin, the GPT-15012, designed to fulfill the rigorous requirements of IEC 61010-2-034. This customary governs the security necessities for electrical tools in measurement, management, and laboratory settings, particularly concentrating on units for insulation resistance and electrical power testing. The analyzer ensures person security by adhering to strict {hardware} and software program interface necessities. It’s very best for testing high-voltage insulation merchandise like vitality storage elements, photovoltaic modules, relays, and wiring.
The corporate claims the analyzer can carry out DC-withstanding voltage and insulation resistance checks. It includes a extremely environment friendly PWM amplifier that mitigates the affect of fluctuating enter voltages or distorted waveforms, guaranteeing secure high-voltage output. Security enhancements embody a double insulation design for the facility provide and output voltages and a retractable START key to stop unintended high-voltage activation. Optionally available security mechanisms, reminiscent of dual-button activation and a hold-to-start operate, additional safe the testing course of—visible and audible indicators alert customers to check statuses and outcomes, enhancing operational security.
The analyzer boasts a 7-inch color TFT LCD and maintains the straightforward important design typical of its product household, permitting easy operation and clear outcome show. It helps DC withstanding voltage checks as much as 12 kV/10 mA and insulation resistance checks from 50 V to 5000 V, as much as 50 GΩ. Options like adjustable voltage ramp settings, exact measurement resolutions, and intensive capacitance testing capabilities make this mannequin versatile for numerous purposes.
Extra features embody a statistical characteristic that data take a look at objects, counts, and outcomes, displaying them in bar graph type immediately on the unit, eliminating the necessity for a PC throughout manufacturing. The sweep operate aids in analysing product failure factors by displaying voltage-current relationship curves. EIntegration options reminiscent of barcode scanning, rear output terminals, and entrance panel distant management are included, catering to stylish system setups and operational ease.
